Spirax Sarco introduced several products at the 2005 International Air-Conditioning, Heating, Refrigerating Exposition (AHR Expo). The company highlighted its new Pivotrol condensate pump, which Neil Davies, pump product manager, noted has been engineered for dependable steam system condensate recovery in rapid-cycling process environments.

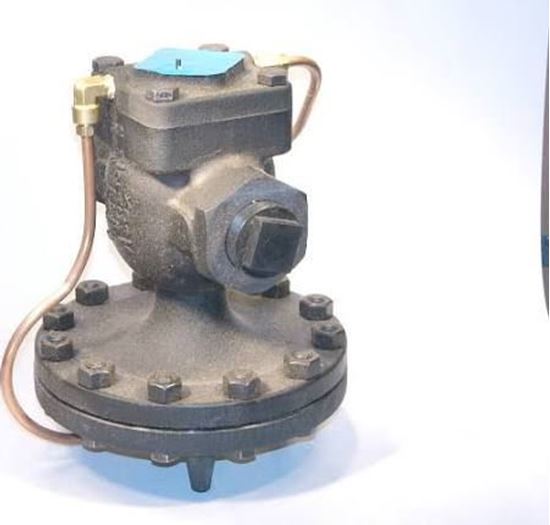

a) 25 1 1/2" MAIN VALVE For Spirax-Sarco Part# 55226:

#25 1 1/2" MAIN VALVE


DESCRIPTION:

Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 25P Series, 1-1/2 in Nominal Size, NPT, 250 psig Operating, 450 deg F Operating, Cast Iron Body, Media: Steam, 18.4 in H, Domestic

The 25P is a self-actuated pilot operated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot, which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.

Temperature Rating      :      450 deg F Operating
Nominal Size              :      1-1/2 in
End Style                  :      NPT
Body Material           :      Cast Iron
Series                       :      25P
Type                         :      Pilot Operated
Domestic/Import      :      Domestic
Media                       :      Steam
Dimensions              :      18.4 in H
Pressure Rating         :      250 psig Operating
Industry Standards      :      ASTM A 126 Class B Body

FEATURES:

• Combination of pilots allow for different types of control in one regulator
• Fatigue-tested diaphragm designed without a piston to prevent the danger of sticking
• Stainless steel internals for excellent durability and resistance to corrosion
• Maximum allowable pressure: 250 psig at 0 to 450 deg F
• Maximum allowable temperature: 450 deg F at 0 to 250 psig
• Patented self scrubbing guide for long, trouble-free service
• Accurate control of pressure with choice of color-coded springs
• Horizontal installation
• 7.6 in the inlet to outlet

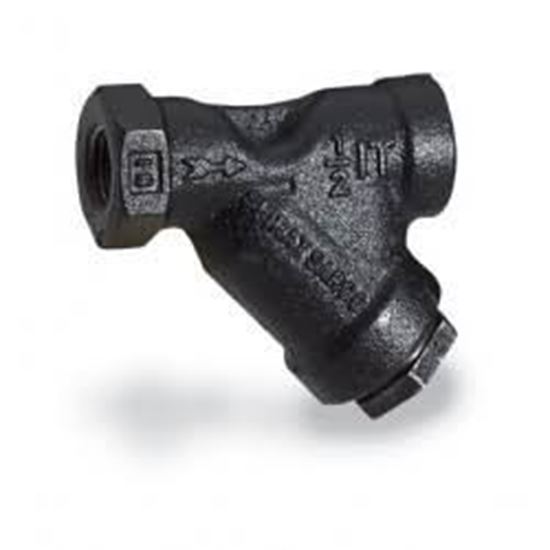

b) 1 1/2" NPT Y-Strainer w/20Mesh For Spirax-Sarco Part# 60314:

1 1/2" NPT Y-Strainer w/20Mesh

DESCRIPTION:

Spirax Sarco Wye Strainer, Series: IT, 1-1/2 in Nominal Size, 6.6 in Overall Length, NPT Connection, 1-1/4 in NPT Blow-Off Size, Cast Iron

SPECIFICATIONS:

Blow-Off Size                      :              1-1/4 in NPT

Nominal Size                        :              1-1/2 in

Connection Type                  :               NPT

Series                                    :               IT

Material                                :               Cast Iron

Overall Length                     :               6.6 in

Industry Standards               :               ASTM A126 Class B

FEATURES:

•             High efficiency steam strainers for better quality steam

•             Designed to remove solid particles from the steam supply

•             Reduce levels of contamination

•             Maintain quality of end product

•             250 psi Maximum saturated steam pressure

•             406 deg F at 0 to 250 psi maximum allowable temperature

•             300 psig at -20 to 150 deg F maximum allowable pressure

•             6.4 in inlet to outlet

•             Vertical down or horizontal piping configuration

•             38 Cv

•             304 stainless steel standard screen
